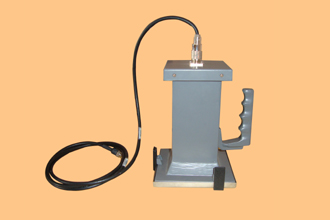

Alpha Contamination Probe [ Type No.: ACP 1 ]
Technical Data
Alpha Contamination Probe type ACP-1 of Nucleonix make serves as a large area (Approx. 100 sq.cm) alpha contamination probe. It is designed to work with Nucleonix make Contamination Monitor (Bench Model) CM712 or its equivalent.
Specifications
| Alpha Scintillator Screen | A circular Scintillator ZnS screen covered with loose aluminized mylar foil of 125mm dia will be used, with a conical light guide for 2″ PMT. 2″ PMT of Hamamatsu or ETL or Equivalent. |
|---|---|
| Viewing area | 100 sq.cm Approx (circular) |
| Operating Voltage Range | 800V to 900V | Efficiency | Better than 25% (at centre) in contact with mesh |
| Cable length | One meter (by default) |
| Open Area | More than 85% of the area is open for measurement |
